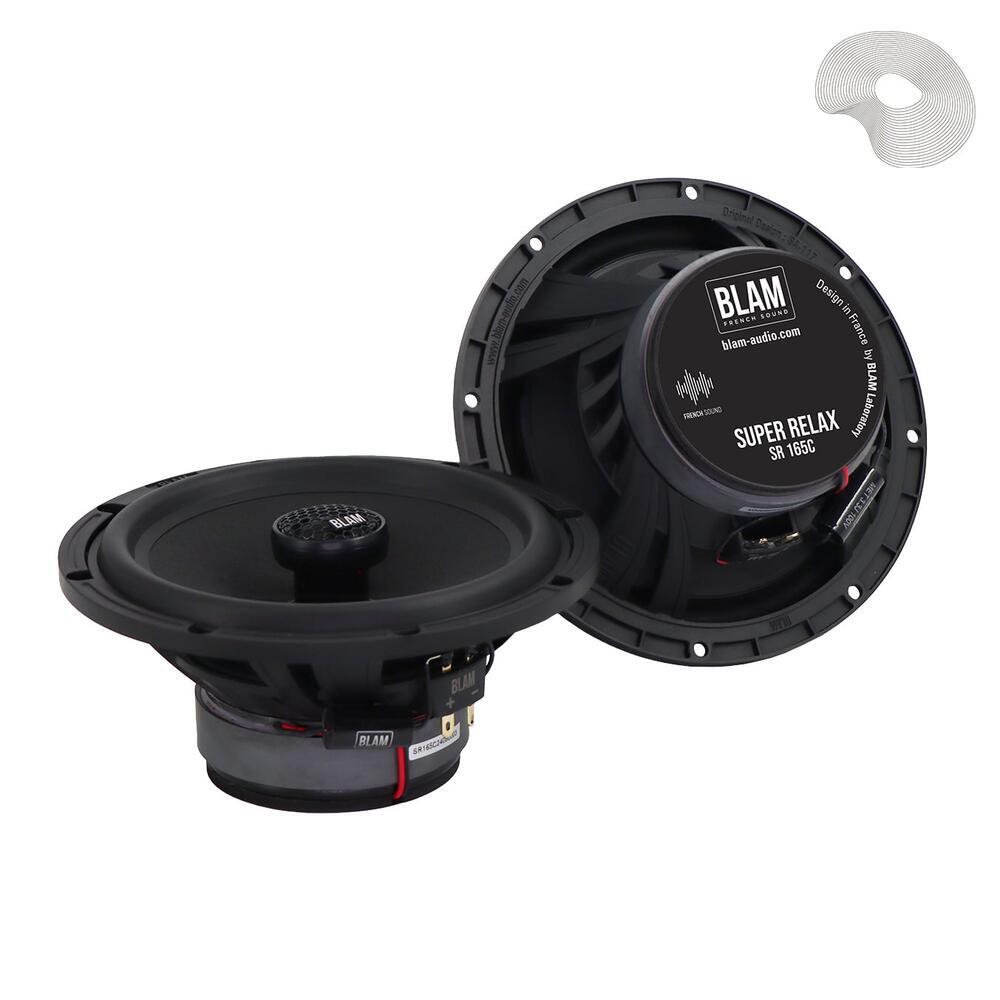

SR165C

High-efficiency coaxial KIT SR165C

Max power 150 W – Nominal power 75 W Frequency response 60 Hz – 25 kHz Impedance 3 Ω – Sensitivity 93 dB

THIS KIT INCLUDES

• Woofer 165 mm

Glass fiber reinforced composite salad bowl

High quality treated cellulose pulp membrane

All-round butyl suspension

Spider long life “Conex

25 mm voice coil on Kapton former

Magnetic motor 85 x 17 mm

5 mm magnetic circuit

• Tweeter coaxial

High-quality 20 mm coaxial soft-dome tweeter

N38 noedymium motor

Integrated high-pass filters 6 dB/octave

Kit composition

• 2 coaxial woofers with integrated capacitor
• Mounting screws
• Instructions for use
